Installing a Digital Readout (DRO) on my Emco Maximat V10 Metal Lathe

Difficulty Level (Easy, Medium, Hard, Insane):
Medium

Process:
I've been wanting to get a DRO for my metal lathe for almost a year because it makes finding and re-finding certain positions a lot easier but even the cheapest ones are almost $500 bucks so I made a secret deal with my wife and was fortunate enough to be able to satisfy my wife's requirements of the deal and ordered a DRO on ebay.

The discussions online all vary between getting a cheap-o chinese glass scale DRO or an easy to cut and smaller magnetic scale or to fork out a grand or two and get a really high quality DRO. Considering all my option, I decided to go with the  cheap-o chinese glass scales because I don't use my lathe for 40 hours a week and I don't mind going a bit slower and double check my work a bit more frequently than to spend a lot of money on a fancy set of DRO scales.

I bought the following set off ebay: 3 AXIS DIGITAL DISPLAY READOUT DRO FOR MILL LATHE MACHINE AND 3 LINEAR SCALE and have to say that I am very happy with it so far. The manual is crap, but it got me far enough to figure out how to use it.

Once I got the DRO in the mail, I unpacked it and made sure it all worked properly. Then came the fairly lengthy part of installing the scales. For the x-axis I had to actually make a wood patern, use my Aluminum Home Foundry along with the Propane Burner to cast the part, then use the lathe to finish the part.

Installing the y-axis was also a little tricky because I didn't have a lot of space beside the cross slide to mount the scale. I was debating installing it on the left hand side but that would have taken away from the "over the cross slide" capability of my lathe and I didn't want the scale to be too close to the rotating chuck for fear of accidentally damaging it.

The y-axis was probably the easiest but I did require a custom cast ring around my round mill head column so I could mount the scale in a way that would allow it to rotate out of the way when I wasn't using the mill head.

All in all it was a fun project that wasn't too hard and all the custom parts could have been made out of bought stock aluminum so a home foundry wasn't even necessary but it did help keep the cost down.

Videos:









Pictures:
The picture of the DRO from ebay
The picture of the glass scale and reader from ebay
Another picture from ebay
And another one
The custom bracket drawn up in FreeCAD
The parcel arrived!
Unpacking the DRO
What a beautiful sight
Tapping the first hole into my lathe to install the x-axis scale
A view of the lathe with the x-axis
Testing the x-axis for levelness
Testing various scenarios on how to mount the reader to the carriage
The DRO display
A custom bracket I bent up to test, but it was too flimsy so I had to go the heavy-duty cast aluminum route
Tilting the lathe so I could get to the underside
The dimensions of the custom bracket to mount the x-axis reader to the carriage
The dimensions, 3D diagram and mold pattern
My son adding some lego to my aluminum cast
And a toy from McDonalds
A 17 pound ingot of aluminum I bought at an auction is now getting melted up. The crystalized grain structure is fascinatingly beautiful
A little piece of aluminum I broke off the ingot
Another view
Machining the custom x-axis bracket
Another view of the custom x-axis bracket
Holding the x-axis bracket in place for testing
Tapping the custom bracket for the x-axis
Tapping the carriage apron
Milling the recesses for the cap screw heads
The installed custom bracket with the angle bracket holding the reader head
Side view of the custom bracket
View of the installed custom x-axis bracket from underneath
The x-axis glass scale done
Fitting the reader head cable into a fairly rigid "flexible" electrical conduit
The DRO x-axis cable management installed
I screwed the end of the electrical conduit into the lathe stand so it wouldn't get caught while working the carriage back and forth
View from the end of the lathe
Close-up of the installed cable management for the DRO x-axis
Getting ready to install
Drilling the cross slide for the rear bracket to hold the DRO y-axis
The other side of the cross slide
Cutting up another custom bracket to hold the DRO y-axis reader head
Drilling and tapping yet another hole into the carriage
The installed bracket to hold the DRO y-axis reader head
Testing the DRO y-axis glass scale for levelness
The rough cast of the round bracket for the DRO z-axis
Machining it down to size
The finished bottom bracket for the z-axis
Another view
Measuring the center of the bottom bracket
Machining off one side to be able to attach the DRO z-axis glass scale

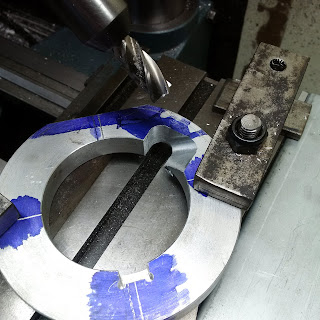

Getting ready to mill a gap to read the mill head angle indicator
One angle done
Another view from a little further away
The second angle done
The finished bottom bracket for the DRO z-axis glass scale
Machining an extension for the bottom bracket
Bolting the extension to the z-axis bottom bracket
The finished bottom bracket
Another view
The bottom bracket installed on the mill column
The view port that shows the angle indicator marks on the mill column
I ended up having to mill the extension down a bit more
Milling a slot into the top bracket of the DRO z-axis
Testing for levelness of the DRO z-axis
The installed z-axis
Close-up of the top bracket
Close-up of the bottom bracket
Another view of the top bracket
Cutting the slots into the bracket holding the z-axis reader
The finished bracket
Tapping holes to hold the bracket to the mill head
The z-axis installed

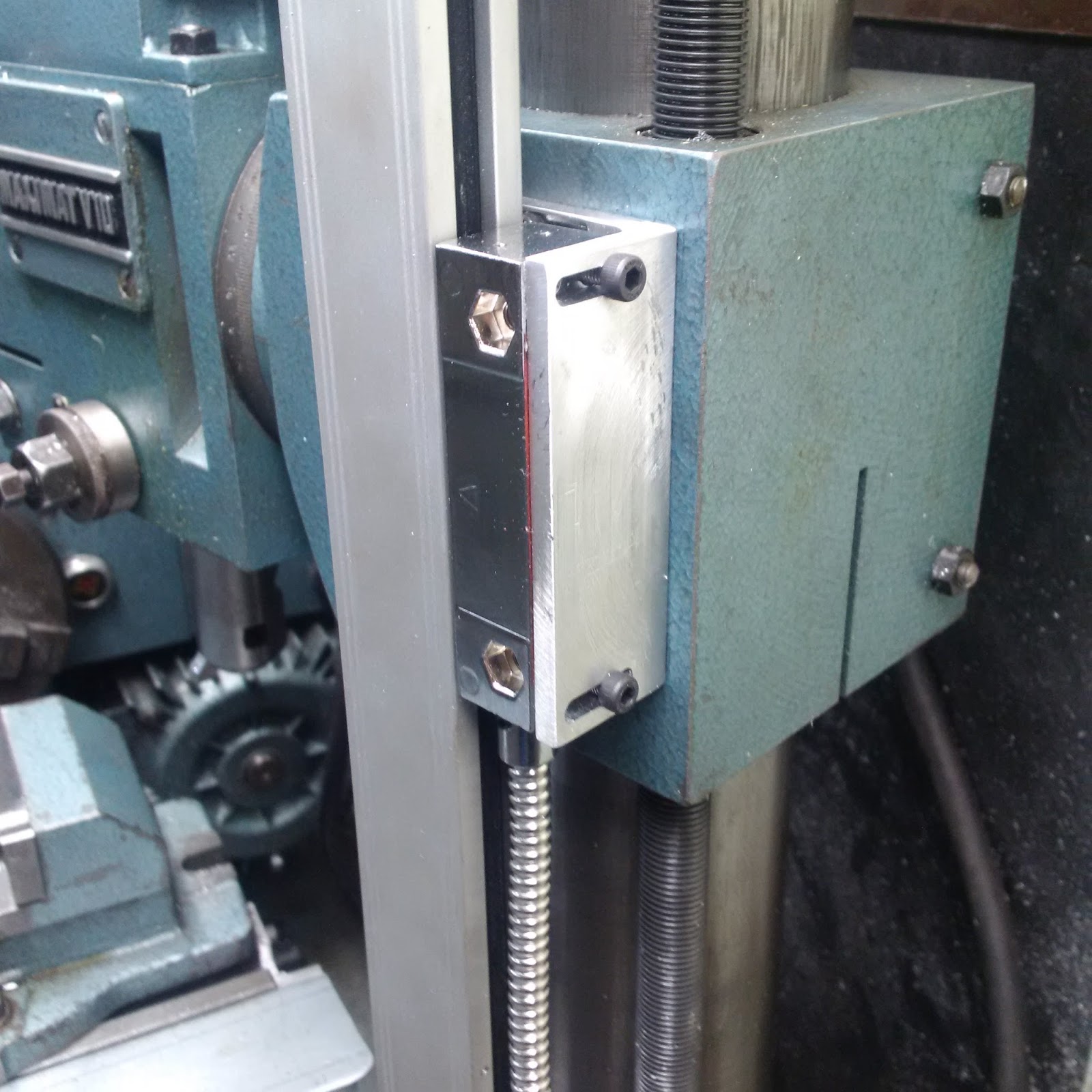

Close-up of the bracket holding the reader head
Another view
Tools:
Metal band saw
Drill & drill bits
Tap & die set
Hammer
Measuring tape
Ear & eye protection
Metal lathe & accessories

Materials:
DRO kit
12" of 3" x 3" x 1/4" aluminum angle

Cost:
$500.00

Time:
25 hrs

Conclusion:
I love it. It makes working on the lathe so much easier
